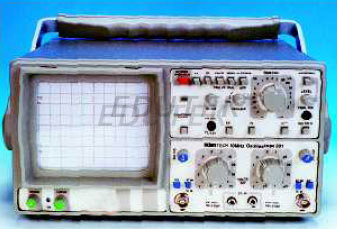

1.  DC to 20 MHz,dual beam
2.  2mV per cm sensitivity A high performance oscilloscope with wide vertical bandwidth and time-base speed range.

Specifications :
Operating mode : Ch I, Ch II, Ch I & II Alternated / chopped
Vertical Deflection: DC - 20 MHz (-3 dB)
(identical channels) DC - 28 MHz (-6 dB) Deflection
Coefficients : Twelve calibrated steps 2 mV to 10V/cm
Input Impedance : 1 M ohm//25 pf
Input coupling : DC-AC-GD

Max Input Voltage : 500 V (d.c.+ peak a.c.)
Time Base : 18 calibrated steps 0.5 μs/cm to 0.2s/cm,with magnifier x5 to 100 ns/cm with variable control to 40 ns/cm
Accuracy : ±3%
Trigger System :
Modes : Automatic or variable trigger level
Source : Channel I or II or external
Slope ; Positive or negative
Coupling : a.c., TV frame
Horizontal Deflection :
Bandwidth : DC 2.3 MHz
Deflection co-efficient : 12 calibrated steps
2mV/cm to 10V/cm
Input impedence : 1 M//25 pf
Built-in single touch component tester :
Test voltage : Max.8.6 V rms (open)
Test Current : Max 28 mA rms (shorted)
Test frequency : 50 Hz
Display : 8 x 10 cm
Trace rotation : Adjustable on front,panel
Calibrator : Square wave 1 KHz approx 0.2V ±1%
Mains Voltage : 220-240 V 50, Hz (switch at the back)
Mains fluctuation : ±10%
Included accessories :

1.  1 BNC-BNC cable

2.  1 BNC-crocodile clip cable

3.  1 pair Test probe

4.  1 Manual
