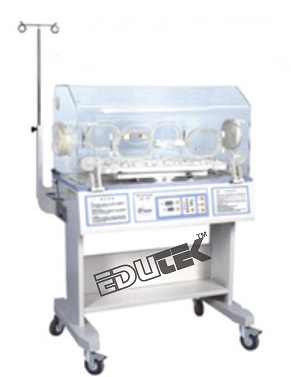

Baby Incubator Servo Type |
9177 |
|
| |
|
|
|
|
(Cat No. - 9177) |
Three level safety ciruits:
- Constant
indication and control of air & skin temperature.
- Individual sensors for air & skin.
- L.E.D.
bar graph with 4 increments, to indicate heater output
Servo Specification:
- A1 Auto Cut-off at 38.5C Air. 37.5C skin, solid state relay.
- A1 Auto
Cut-off: 39.0C Automatic(for both modes)
- A1 Auto Cut-off: overall 39.5C-Parallel electrical
sagety.
Technical Specification:
|
Model
|
Rajas-41 incubator
with cabinet
|
|
Length
|
30 inch. (707 mm)
|
|
Breadth
|
17 inch. (444 mm)
|
|
Height
|
51 inch. (1285 mm)
|
|
Weight
|
45
kgs approx.
|
|
Baby bed size
|
24 x 14(610 x 370 mm)
|
|
Tilt
|
-8 Degrees
|
|
Best environment for operation
|
220 C to 290 C
|
|
Humidity
|
0 to 95% R/H
|
|
Electrical Rating
|
230 V.A.C. - 10% 50
Hz
|
|
Heater
wattage
|
250 Watts
|
|
Overall wattage
|
350 Watts when heater humidifier and blower is on
|
Safety Cut Offs & Alarms:
|
Air over temperature
|
Audio Visual
|
|
Air sensor fail
|
Audio Visual
|
|
Air over
temperature
|
Audio Visual
|
|
Skin
sensor fail
|
Audio Visual
|
|
System
fail
|
Audio Visual
|
|
